Finally getting around to finding an uploading some older pictures of the World Challenge R34 GT-R. Here are a few pictures of the first look at the R34 GT-R, right after
Igor purchased it from Symbolic Motor Cars.
 | |
| Weighing the car |
Here is the car just as it was raced at California Speedway, and prior to any changes to World Challenge specifications.
 |
| The engine looks pretty stock |
|
|
 |
Pi System 2 Dash and Datalogging
|
 |
| ATTESA and ABS control switches |
The Super Taikyu R34 GT-R had adjustable ATTESA torque split, and adjustable ABS. The ATTESA system was also modified to use the Hicas(rear wheel steering) yaw sensor as an input. This Nismo ATTESA ECU is very trick, and was leased to the teams.
 |
| 120 L fuel cell and quick fill |
 |
| Nismo part number on the roll cage |
 |
| Brembo monoblock brakes. Ohlins coil overs |
|
 |
| Brake cooling ducts. Brake quick disconnects |
 |
| Transfer case cooler |
|
In addition to the transfer case cooler, there was a transmission and rear differential cooler. On some tracks, they even ran a front differential cooler. This car is an endurance race car, and cooling is very important. If you ever get serious about tracking a car, you need to pay close attention to the cooling systems. What works on the street, does not work on the track.
 |
| Getrag transmission. Titanium downpipe |
 |

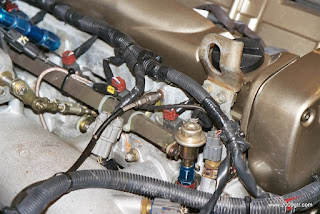

| Engine |
 |
| Transfer case |
 |
| Titanium Nismo strut tower brace |
 |
| Bleeder screw is vented |
 |
| FIA roll cage. This wasn't going to work for SCCA |
 |

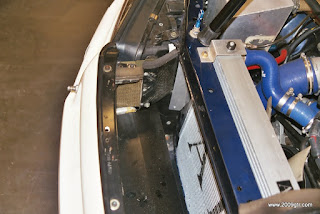

| Ducting |
 |

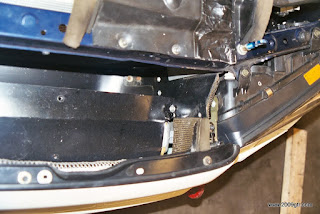

| More ducting. Airflow is IMPORTANT |
 |
| Modified and reinforced trunk lid |
 |
| Knee bracing and heat shields |
 |

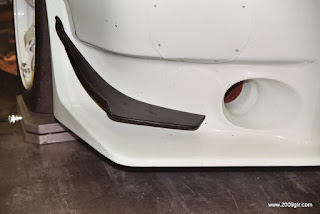

| Canards and brake ducts |
 |
| C-West front bumper. ARC oil cooler | | |
|
|
These are but a few of the detail shots that we took of the car, before we started doing anything. Suzuki checked it out, we did some basic maintenance, then took it to Willow Springs for the first test. Coming up next are some pictures from testing, Time Attack, and taking it apart to paint and prepare it for World Challenge in 2006.
These are but a few of the detail shots that we took of the car, before we started doing anything. Suzuki checked it out, we did some basic maintenance, then took it to Willow Springs for the first test. Coming up next are some pictures from testing, Time Attack, and taking it apart to paint and prepare it for World Challenge in 2006.
